Specification, Dimensions & Pricing
Specification
Prices are for castor complete with expanders – see pricing below

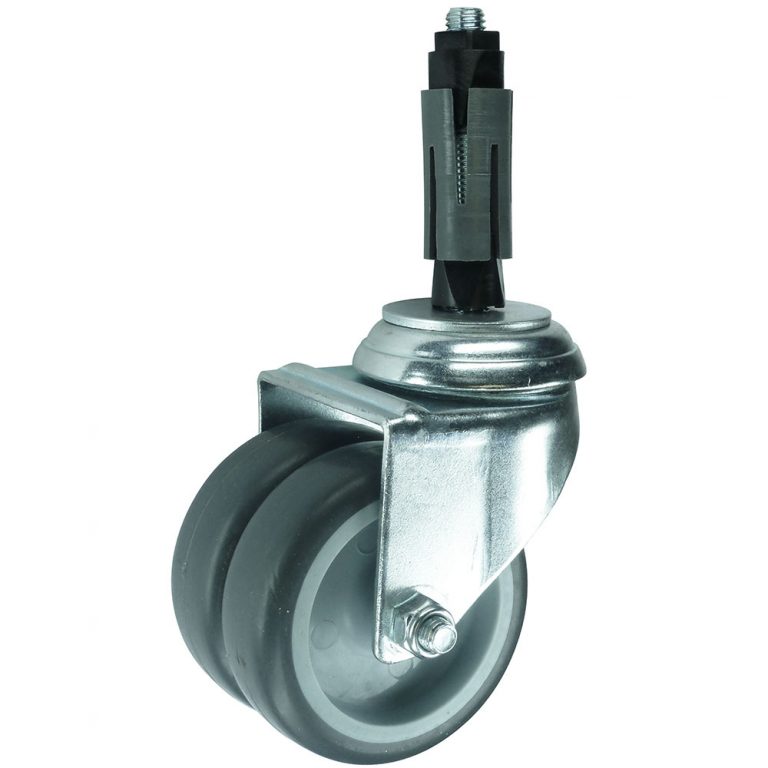

- Expanding adaptor (Expanders) in choice to fit either round or square tube in range of sizes below. Use to fit castors to trolleys, workbenches and other equipment with tubular section framework.
- Expansion ranges (measurements are internal tube sizes):
- minimum 19mm expands to max 21mm
- minimum 21.5mm expands to max 24mm
- minimum 24mm expands to max 27mm
- minimum 27mm expands to max 30mm
- Expander fits inside the tube and are secured by tightening the bolt under castor head
- Castor specification:
- Wheel diameters: 2 x 50mm or 2 x 75mm
- Load capacities per castor: 80kg, 100kg
- Twin wheel material choice:
- Plastic/polypropylene wheel
- Thermoplastic grey non-marking rubber tyre on nylon centre
- Plain bearing wheels
- Available as:
- Swivel castor

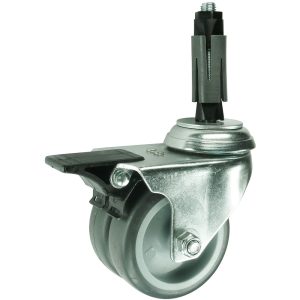

- Braked swivel castor – total stop brake locks wheel and swivelling head
Dimensions & Pricing
Detailed below are dimension and price information as an easy way to check castor specifications and costings, then simply use the order buttons above to place your order or call 01243 607029.
PRICES ARE FOR CASTOR COMPLETE WITH EXPANDER. For email orders add relevant expander suffix to castor reference. Example for a 50mm rubber castor with brake and expander for 27mm to 30mm round tube = A26BXP-R7
