Specification, Dimensions & Pricing
Specification
Prices are for castor complete with expanders – see pricing table below
- Wheel diameters: 75mm, 100mm or 125mm
- Load capacities per castor: 100kg, 150kg or 170kg
- Pressed steel castor housing with double ball race swivel head
- Expanding adaptor (expanders) in choice to fit either round or square tubing in range of sizes below
- Expansion ranges (measurements are internal tube dimensions), choice for both round or square tubing:
- minimum 19mm expands to max 21mm
- minimum 21.5mm expands to max 24mm
- minimum 24mm expands to max 27mm
- minimum 27mm expands to max 30mm
- Expanders push inside the tube and are secured by tightening the bolt under castor head
- Either:
- Nylon wheel, or
- Black non-marking polyurethane tyre wheel on nylon centre
- Wheel runs on ball bearing for minimum rolling resistance
- Grey plastic centre thread guard

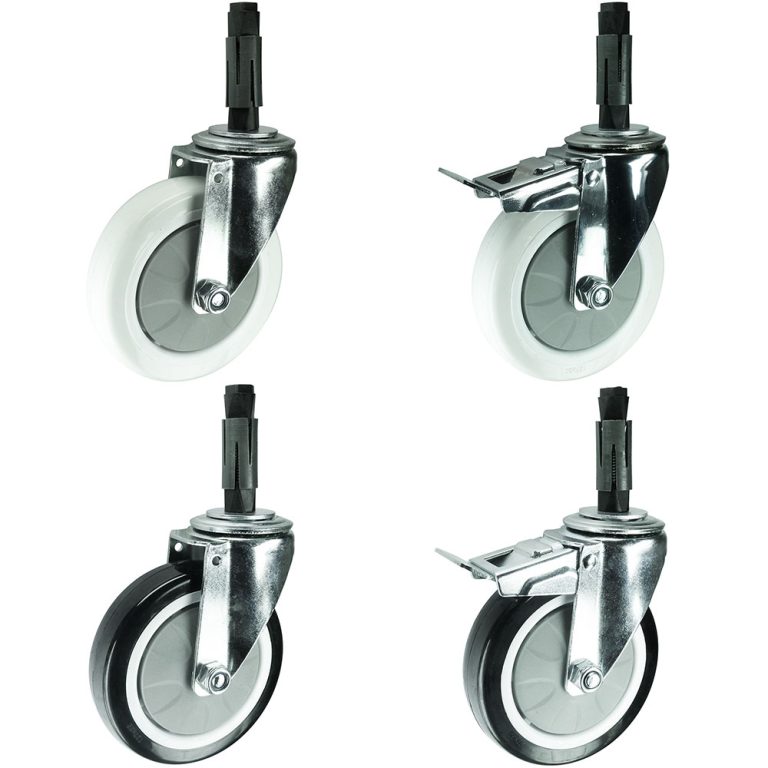

- Available as:

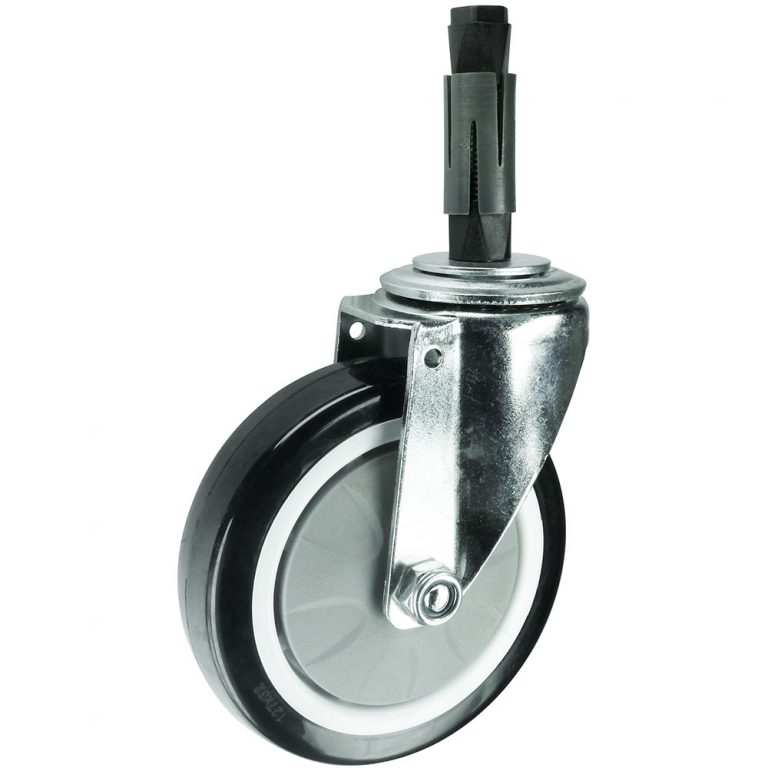

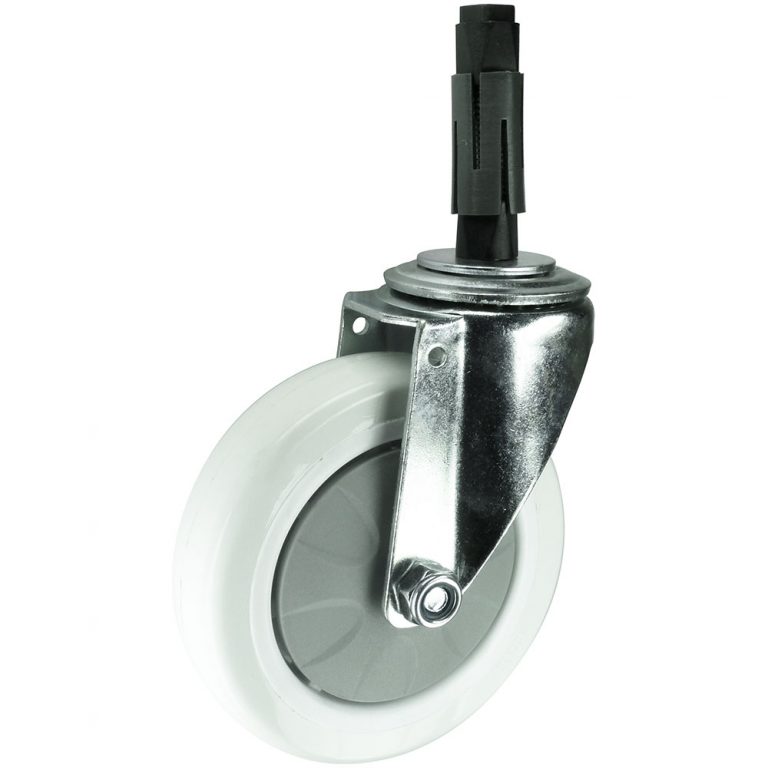

- Swivel castor

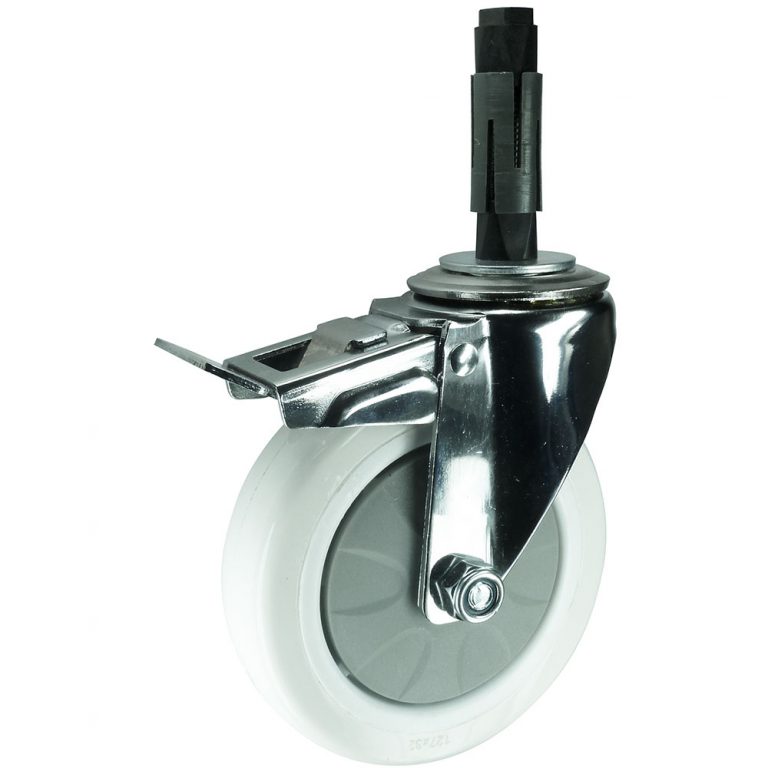

- Brake swivel castor with total stop to lock both swivel head and wheel
Dimensions & Pricing
Detailed below are dimension and price information as an easy way to check castor specifications and costings, then simply use the order buttons above to place your order or call 01243 607029.
PRICES ARE FOR CASTOR COMPLETE WITH EXPANDER. For email orders add relevant expander suffix to castor reference. Example for a 100mm polyurethane castor with brake and expander for 24mm to 27mm square tube = A34ABXP-S6
